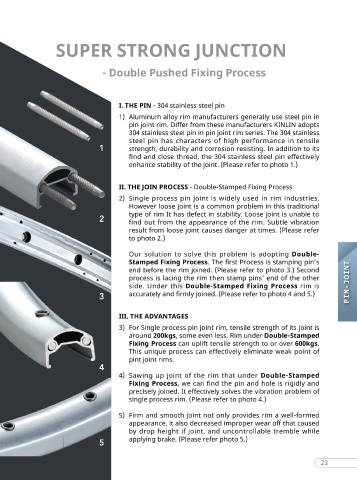

WASP STING SUPER STRONG JUNCTION

Pin-joint rim is out of date! Hold on! This is not exactly right! The new coming “Wasp - Double Pushed Fixing Process
Sting” series will absolutely change conventional views of pin-joint rim.

With traditional round shape steel pin, pin-joint rim gained bicyclists’ reliance on
its stability and strength, however, it also limit possibility on rim design. For example, I. THE PIN - 304 stainless steel pin
if designer tempts to use pin with larger width of section, it could influence dynamic 1) Aluminum alloy rim manufacturers generally use steel pin in
balance of the rim. Moreover, using pin which made of different material could risk pin joint rim. Differ from these manufacturers KINLIN adopts
304 stainless steel pin in pin joint rim series. The 304 stainless
taking down the strength of the rims. These are paradox of traditional pin-joint rim. steel pin has characters of high performance in tensile
1 strength, durability and corrosion resisting. In addition to its
“Wasp Sting” series successfully solve these problems by adopting customized pin- find and close thread, the 304 stainless steel pin effectively
Wasp Sting, we name it. A 304 stainless steel pin screw in preformed hollow aluminum enhance stability of the joint. (Please refer to photo 1.)
alloy stick can effectively enhance both strength of the seam and the joint itself.
II. THE JOIN PROCESS - Double-Stamped Fixing Process
This unique component provides wide possibilities on designing rims for heavy duty
riding. Riding on rims that equipped Wasp Sting and KINLIN T10 Process can uplift 2) Single process pin joint is widely used in rim industries.
However loose joint is a common problem in this traditional
racers’ confidence during down-hilling or jumping in severe competitions. type of rim It has defect in stability. Loose joint is unable to
2 find out from the appearance of the rim. Subtle vibration
result from loose joint causes danger at times. (Please refer
to photo 2.)

Our solution to solve this problem is adopting Double-
Stamped Fixing Process. The first Process is stamping pin’s
end before the rim joined. (Please refer to photo 3.) Second
process is lacing the rim then stamp pins’ end of the other
side. Under this Double-Stamped Fixing Process rim is
3 accurately and firmly joined. (Please refer to photo 4 and 5.)

III. THE ADVANTAGES
3) For Single process pin joint rim, tensile strength of its joint is
around 200kgs, some even less. Rim under Double-Stamped
Fixing Process can uplift tensile strength to or over 600kgs.
This unique process can effectively eliminate weak point of
STY *Eyelet optional 4 pint joint rims.

4) Sawing up joint of the rim that under Double-Stamped
Size Weight ERD Material
Fixing Process, we can find the pin and hole is rigidly and
26x2.125~3.0 (559) 870g 529 KLR60 precisely joined. It effectively solves the vibration problem of
24x2.125~3.0 (507) 790g 477 KLR60 single process rim. (Please refer to photo 4.)
20x2.125~3.0 (406) 630g 376 KLR60
5) Firm and smooth joint not only provides rim a well-formed
appearance, it also decreased improper wear off that caused
by drop height if joint, and uncontrollable tremble while
applying brake. (Please refer photo 5.)
